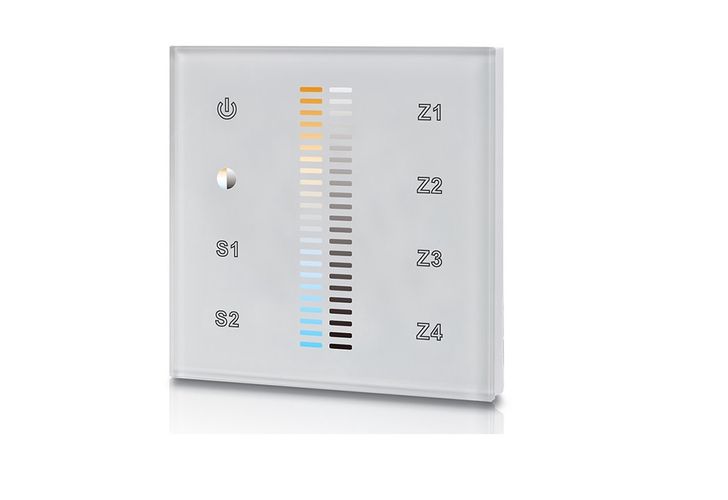

DALI touch panel for 4 individual groups with CCT control DT6 Sunricher
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
This DALI controller is available with both 100-240VAC input and 12-24VDC input versions. AC input version is designed with built-in 100mA DALI power supply to power up to 50 DALI ECG and it can also be powered by DALI bus while not connected to AC mains. Max. 100 DALI ECG can be controlled by 4 AC input DALI touch panels via broadcast on a control circuit with 2 connected to AC mains and 2 powered by DALI bus.
Key Features
Comply to DALI standard protocol IEC 62386-102, IEC 62386-207, IEC 62386-209 and in compliance with DALI products from other international incorporation.
Touch interface operation design, easy to use.
With bus detective function, one channel DALI bus can install multiple controllers.
12-24VDC input and 100-240VAC input versions optional.
AC input version with built-in 100mA DALI power supply to power up to 50 DALI ECG.
AC input version can also be powered by DALI bus while not connected to AC mains.
Max. 100 DALI ECG can be controlled by 4 AC version DALI panels via broadcast on a control circuit with 2 connected to AC mains and 2 powered by DALI bus.
Up to 4 light zones for dimming and CCT control. Each zone can be 2 DALI address (DT6) or 1 DALI group (DT8).
Can save 2 scenes.
Supports DT8 Device Commands.
Supports DT8 Color Type Tc.
Compatible with DALI Masters That Support DT8 Commands.
Easy to Select and Control Designated DALI Groups & Scenes (DT8) or DALI Addresses (DT6).
Smooth & Fine Color Temperature Adjustment.
Suitable for CCT color LEDs.
EU & US Size Available, Easy Installation Into Existing Wall Box
Useful information
Specifications
Experimental product description generated by artificial intelligence
The Sunricher DT6 DALI touch panel is a versatile and user-friendly control solution for DALI lighting systems. This panel allows you to control up to four individual light groups, offering precise control over your lighting setup.
With its intuitive touch interface, you can easily switch lights on and off, adjust brightness levels, and even control the color temperature (CCT) of your lights. The panel features a dedicated CCT slider for fine-tuning the white light spectrum, allowing you to create the perfect ambiance for any situation.
The DT6 DALI touch panel is designed for seamless integration into existing DALI systems. It supports standard DALI protocols, ensuring compatibility with a wide range of DALI-compatible luminaires and drivers. The panel also features a convenient scene recall function, allowing you to save and recall your preferred lighting configurations with a simple touch.
Here are some key features of the DT6 DALI touch panel:
- Controls up to four individual light groups
- Touch-sensitive interface for easy operation
- CCT slider for precise color temperature control
- Scene recall function for saving and recalling lighting configurations
- Compatible with standard DALI protocols
If you're looking for a reliable and user-friendly way to control your DALI lighting system, the Sunricher DT6 DALI touch panel is an excellent choice. Its versatility, ease of use, and advanced features make it an ideal solution for both residential and commercial applications.
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
